IEC MV, XLPE Insulation, CWS, STA, PVC - SEC
IEC MV, XLPE Insulation, CWS, STA, PVC - SEC
Multi-core XLPE-insulated cables with PVC sheath
Read more3x120
Nexans ref. 23120VXCMTB09DD0
- Conductor cross-section: 120 mm²
- Approximate weight: 6255 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x120
Nexans ref. 23120VXCMTB09ED0
- Conductor cross-section: 120 mm²
- Approximate weight: 6665 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x120
Nexans ref. 23120VXCMTB09GD0
- Conductor cross-section: 120 mm²
- Approximate weight: 7220 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x120
Nexans ref. 23120VXCMTB09HD0
- Conductor cross-section: 120 mm²
- Approximate weight: 7730 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x120
Nexans ref. 23120VXCMTB09JD0
- Conductor cross-section: 120 mm²
- Approximate weight: 10330 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x150
Nexans ref. 23150VXCMTB09DD0
- Conductor cross-section: 150 mm²
- Approximate weight: 7175 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x150
Nexans ref. 23150VXCMTB09ED0
- Conductor cross-section: 150 mm²
- Approximate weight: 7620 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x150
Nexans ref. 23150VXCMTB09GD0
- Conductor cross-section: 150 mm²
- Approximate weight: 8220 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x150
Nexans ref. 23150VXCMTB09HD0
- Conductor cross-section: 150 mm²
- Approximate weight: 9520 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x150
Nexans ref. 23150VXCMTB09JD0
- Conductor cross-section: 150 mm²
- Approximate weight: 11425 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x185
Nexans ref. 23185VXCMTB09DD0
- Conductor cross-section: 185 mm²
- Approximate weight: 8290 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x185
Nexans ref. 23185VXCMTB09ED0
- Conductor cross-section: 185 mm²
- Approximate weight: 8740 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x185
Nexans ref. 23185VXCMTB09GD0
- Conductor cross-section: 185 mm²
- Approximate weight: 10145 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x185
Nexans ref. 23185VXCMTB09HD0
- Conductor cross-section: 185 mm²
- Approximate weight: 10730 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x185
Nexans ref. 23185VXCMTB09JD0
- Conductor cross-section: 185 mm²
- Approximate weight: 12730 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x240
Nexans ref. 23240VXCMTB09DD0
- Conductor cross-section: 240 mm²
- Approximate weight: 9960 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x240
Nexans ref. 23240VXCMTB09ED0
- Conductor cross-section: 240 mm²
- Approximate weight: 11225 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x240
Nexans ref. 23240VXCMTB09GD0
- Conductor cross-section: 240 mm²
- Approximate weight: 11880 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x240
Nexans ref. 23240VXCMTB09HD0
- Conductor cross-section: 240 mm²
- Approximate weight: 12485 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x240
Nexans ref. 23240VXCMTB09JD0
- Conductor cross-section: 240 mm²
- Approximate weight: 14545 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x25
Nexans ref. 23025VXCMTB09DD0
- Conductor cross-section: 25 mm²
- Approximate weight: 2600 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x25
Nexans ref. 23025VXCMTB09ED0
- Conductor cross-section: 25 mm²
- Approximate weight: 3220 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x25
Nexans ref. 23025VXCMTB09GD0
- Conductor cross-section: 25 mm²
- Approximate weight: 3720 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x300
Nexans ref. 23300VXCMTB09DD0
- Conductor cross-section: 300 mm²
- Approximate weight: 13030 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x300
Nexans ref. 23300VXCMTB09ED0
- Conductor cross-section: 300 mm²
- Approximate weight: 13440 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x300
Nexans ref. 23300VXCMTB09GD0
- Conductor cross-section: 300 mm²
- Approximate weight: 14080 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x300
Nexans ref. 23300VXCMTB09HD0
- Conductor cross-section: 300 mm²
- Approximate weight: 14590 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x300
Nexans ref. 23300VXCMTB09JD0
- Conductor cross-section: 300 mm²
- Approximate weight: 16655 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x35
Nexans ref. 23035VXCMTB09DD0
- Conductor cross-section: 35 mm²
- Approximate weight: 2970 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x35
Nexans ref. 23035VXCMTB09ED0
- Conductor cross-section: 35 mm²
- Approximate weight: 3680 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x35
Nexans ref. 23035VXCMTB09GD0
- Conductor cross-section: 35 mm²
- Approximate weight: 4080 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x35
Nexans ref. 23035VXCMTB09HD0
- Conductor cross-section: 35 mm²
- Approximate weight: 4570 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x400
Nexans ref. 23400VXCMTB09DD0
- Conductor cross-section: 400 mm²
- Approximate weight: 15575 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x400
Nexans ref. 23400VXCMTB09ED0
- Conductor cross-section: 400 mm²
- Approximate weight: 15830 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x400
Nexans ref. 23400VXCMTB09GD0
- Conductor cross-section: 400 mm²
- Approximate weight: 16385 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x400
Nexans ref. 23400VXCMTB09HD0
- Conductor cross-section: 400 mm²
- Approximate weight: 16900 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x400
Nexans ref. 23400VXCMTB09JD0
- Conductor cross-section: 400 mm²
- Approximate weight: 19050 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x50
Nexans ref. 23050VXCMTB09DD0
- Conductor cross-section: 50 mm²
- Approximate weight: 3790 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x50
Nexans ref. 23050VXCMTB09ED0
- Conductor cross-section: 50 mm²
- Approximate weight: 4160 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x50
Nexans ref. 23050VXCMTB09GD0
- Conductor cross-section: 50 mm²
- Approximate weight: 4580 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x50
Nexans ref. 23050VXCMTB09HD0
- Conductor cross-section: 50 mm²
- Approximate weight: 5095 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x50
Nexans ref. 23050VXCMTB09JD0
- Conductor cross-section: 50 mm²
- Approximate weight: 7290 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x70
Nexans ref. 23070VXCMTB09DD0
- Conductor cross-section: 70 mm²
- Approximate weight: 4585 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x70
Nexans ref. 23070VXCMTB09ED0
- Conductor cross-section: 70 mm²
- Approximate weight: 4950 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x70
Nexans ref. 23070VXCMTB09GD0
- Conductor cross-section: 70 mm²
- Approximate weight: 5480 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x70
Nexans ref. 23070VXCMTB09HD0
- Conductor cross-section: 70 mm²
- Approximate weight: 5930 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x70
Nexans ref. 23070VXCMTB09JD0
- Conductor cross-section: 70 mm²
- Approximate weight: 8400 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x95
Nexans ref. 23095VXCMTB09DD0
- Conductor cross-section: 95 mm²
- Approximate weight: 5430 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x95
Nexans ref. 23095VXCMTB09ED0
- Conductor cross-section: 95 mm²
- Approximate weight: 5880 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x95
Nexans ref. 23095VXCMTB09GD0
- Conductor cross-section: 95 mm²
- Approximate weight: 6380 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x95
Nexans ref. 23095VXCMTB09HD0
- Conductor cross-section: 95 mm²
- Approximate weight: 6900 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x95
Nexans ref. 23095VXCMTB09JD0
- Conductor cross-section: 95 mm²
- Approximate weight: 9390 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
Description
Description
Standards
-
InternationalIEC 60332-1; IEC 60502-2
-
National11-SDMS-03, Rev.01
Application
These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial application where chemical and mechanical protections are needed. This group is complying with IEC and SEC specs.

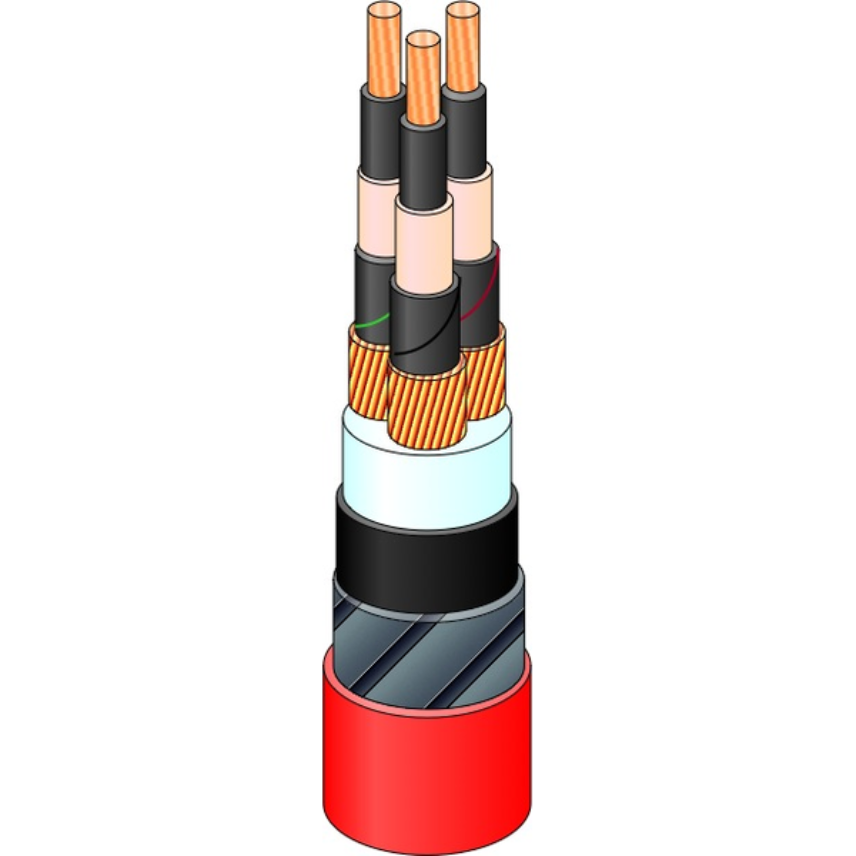

Design
1. Conductor
Stranded bare copper class 2 acc. to IEC 60228 or equivalent
2. Insulation
Triple extruded Inner semi conductive layer - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer
3. Metalic Screen
Copper wire screen with open helix copper tape
4. Inner Sheathing or Bedding
Extruded Polyethylene
5. Armour
Galvanized Steel Tape Armour "STA"
6. Outer Sheath
Polyvinyl Chloride 'PVC'
Options :
- Flame retardant : 'CAT A, CAT B, CATC' to IEC60332 or equivalent.
- Ozone resistant.
- Oil resistant.
- Anti termite.
Sheathing layers can be Halogen Free Flame Retardant "HFFR", or Polyethylene '"PE'
Installation Conditions:
1.Air Temperature : 30 Deg.
2.Ground Temperature : 20 Deg
3.Soil Thermal Resistivity : 1.5 km/w
4.Depth of lay : 0.8 m
All dimensions have tolerance +-7 %
Marking
no. of cores x conductor size mm2 Cu/XLPE/STA/PVC Voltage grade V Standard MADE IN QATAR QICC - Nexans Year Meters
Custom marking available
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
Note: On request we are delivering three single core laid up cables on one drum
