IEC MV, XLPE Insulation, CWS, Lead, PVC (3C)
IEC MV, XLPE Insulation, CWS, Lead, PVC (3C)
Multi-core XLPE-insulated cables with PVC sheath
Read more3x120
Nexans ref. 23120CXCVUB09DO0
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 52.0 mm
- Approximate weight: 8050 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x120
Nexans ref. 23120CXCVUB09EO0
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 56.0 mm
- Approximate weight: 8575 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x120
Nexans ref. 23120CXCVUB09GO0
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 60.0 mm
- Approximate weight: 9310 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x120
Nexans ref. 23120CXCVUB09HO0
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 64.0 mm
- Approximate weight: 9940 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x120
Nexans ref. 23120CXCVUB09JO0
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 73.0 mm
- Approximate weight: 12670 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x150
Nexans ref. 23150CXCVUB09DO0
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 55.0 mm
- Approximate weight: 9240 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x150
Nexans ref. 23150CXCVUB09EO0
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 58.0 mm
- Approximate weight: 9800 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x150
Nexans ref. 23150CXCVUB09GO0
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 62.0 mm
- Approximate weight: 10455 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x150
Nexans ref. 23150CXCVUB09HO0
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 68.0 mm
- Approximate weight: 12250 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x150
Nexans ref. 23150CXCVUB09JO0
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 76.0 mm
- Approximate weight: 14000 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x185
Nexans ref. 23185CXCVUB09DO0
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 58.0 mm
- Approximate weight: 10675 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x185
Nexans ref. 23185CXCVUB09EO0
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 62.0 mm
- Approximate weight: 11270 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x185
Nexans ref. 23185CXCVUB09GO0
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 68.0 mm
- Approximate weight: 13055 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x185
Nexans ref. 23185CXCVUB09HO0
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 71.0 mm
- Approximate weight: 13825 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x185
Nexans ref. 23185CXCVUB09JO0
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 79.0 mm
- Approximate weight: 15575 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x240
Nexans ref. 23240CXCVUB09DO0
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 63.0 mm
- Approximate weight: 12880 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x240
Nexans ref. 23240CXCVUB09EO0
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 68.0 mm
- Approximate weight: 14525 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x240
Nexans ref. 23240CXCVUB09GO0
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 72.0 mm
- Approximate weight: 15365 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x240
Nexans ref. 23240CXCVUB09HO0
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 75.0 mm
- Approximate weight: 16170 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x240
Nexans ref. 23240CXCVUB09JO0
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 84.0 mm
- Approximate weight: 17945 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x25
Nexans ref. 23025CXCVUB09DO0
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 36.0 mm
- Approximate weight: 3325 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x25
Nexans ref. 23025CXCVUB09EO0
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 41.0 mm
- Approximate weight: 4060 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x25
Nexans ref. 23025CXCVUB09GO0
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 45.0 mm
- Approximate weight: 4690 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x300
Nexans ref. 23300CXCVUB09DO0
- Conductor cross-section: 300 mm²
- Nominal outer diameter: 72.0 mm
- Approximate weight: 16870 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x300
Nexans ref. 23300CXCVUB09EO0
- Conductor cross-section: 300 mm²
- Nominal outer diameter: 74.0 mm
- Approximate weight: 17395 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x300
Nexans ref. 23300CXCVUB09GO0
- Conductor cross-section: 300 mm²
- Nominal outer diameter: 78.0 mm
- Approximate weight: 18235 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x300
Nexans ref. 23300CXCVUB09HO0
- Conductor cross-section: 300 mm²
- Nominal outer diameter: 80.0 mm
- Approximate weight: 18900 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x300
Nexans ref. 23300CXCVUB09JO0
- Conductor cross-section: 300 mm²
- Nominal outer diameter: 90.0 mm
- Approximate weight: 20545 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x35
Nexans ref. 23035CXCVUB09DO0
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 39.0 mm
- Approximate weight: 3780 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x35
Nexans ref. 23035CXCVUB09EO0
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 44.0 mm
- Approximate weight: 4690 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x35
Nexans ref. 23035CXCVUB09GO0
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 48.0 mm
- Approximate weight: 5180 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x35
Nexans ref. 23035CXCVUB09HO0
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 52.0 mm
- Approximate weight: 5810 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x400
Nexans ref. 23400CXCVUB09DO0
- Conductor cross-section: 400 mm²
- Nominal outer diameter: 77.0 mm
- Approximate weight: 20160 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x400
Nexans ref. 23400CXCVUB09EO0
- Conductor cross-section: 400 mm²
- Nominal outer diameter: 79.0 mm
- Approximate weight: 20510 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x400
Nexans ref. 23400CXCVUB09GO0
- Conductor cross-section: 400 mm²
- Nominal outer diameter: 83.0 mm
- Approximate weight: 21210 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x400
Nexans ref. 23400CXCVUB09HO0
- Conductor cross-section: 400 mm²
- Nominal outer diameter: 86.0 mm
- Approximate weight: 21875 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x400
Nexans ref. 23400CXCVUB09JO0
- Conductor cross-section: 400 mm²
- Nominal outer diameter: 96.0 mm
- Approximate weight: 23485 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x50
Nexans ref. 23050CXCVUB09DO0
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 42.0 mm
- Approximate weight: 4816 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x50
Nexans ref. 23050CXCVUB09EO0
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 45.0 mm
- Approximate weight: 5250 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x50
Nexans ref. 23050CXCVUB09GO0
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 50.0 mm
- Approximate weight: 5810 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x50
Nexans ref. 23050CXCVUB09HO0
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 54.0 mm
- Approximate weight: 6440 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x50
Nexans ref. 23050CXCVUB09JO0
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 64.0 mm
- Approximate weight: 8785 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x70
Nexans ref. 23070CXCVUB09DO0
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 47.0 mm
- Approximate weight: 5810 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x70
Nexans ref. 23070CXCVUB09EO0
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 50.0 mm
- Approximate weight: 6300 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x70
Nexans ref. 23070CXCVUB09GO0
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 54.0 mm
- Approximate weight: 6965 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x70
Nexans ref. 23070CXCVUB09HO0
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 57.0 mm
- Approximate weight: 7525 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x70
Nexans ref. 23070CXCVUB09JO0
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 68.0 mm
- Approximate weight: 10150 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x95
Nexans ref. 23095CXCVUB09DO0
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 49.0 mm
- Approximate weight: 7000 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x95
Nexans ref. 23095CXCVUB09EO0
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 53.0 mm
- Approximate weight: 7560 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x95
Nexans ref. 23095CXCVUB09GO0
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 57.0 mm
- Approximate weight: 8190 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x95
Nexans ref. 23095CXCVUB09HO0
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 60.0 mm
- Approximate weight: 8890 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x95
Nexans ref. 23095CXCVUB09JO0
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 71.0 mm
- Approximate weight: 11505 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
Description
Description
Standards
-
InternationalIEC 60332-1; IEC 60502-2
Application
These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial application where chemical and mechanical protections are needed. This group is complying with IEC 60502-2.
Design

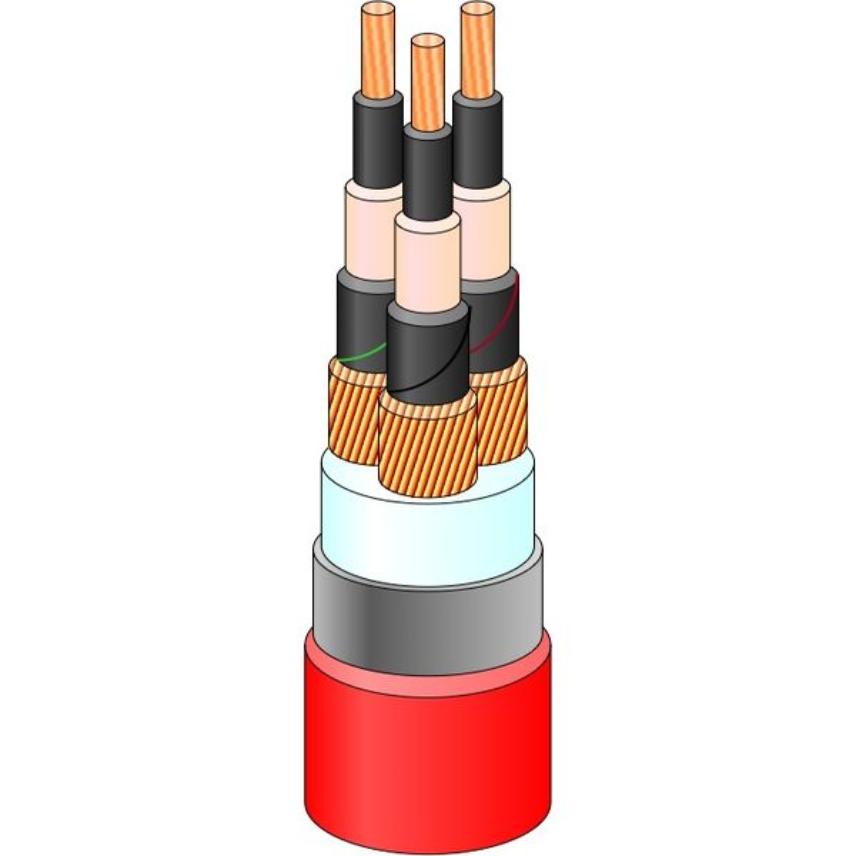

1. Conductor
Stranded bare copper class 2 acc. to IEC 60228 or equivalent
2. Insulation
Triple extruded Inner semi conductive layer - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer
3. Metalic Screen
Copper wire screen with open helix copper tape
4. Metal Sheath
Extruded Lead
5. Outer Sheath
Polyvinyl Chloride 'PVC'
Options :
- Flame retardant : 'CAT A, CAT B, CATC' to IEC60332 or equivalent.
- Ozone resistant.
- Oil resistant.
- Anti termite.
Sheathing layers can be Halogen Free Flame Retardant "HFFR", or Polyethylene '"PE'
Installation Conditions:
1.Air Temperature : 30 Deg.
2.Ground Temperature : 20 Deg
3.Soil Thermal Resistivity : 1.5 km/w
4.Depth of lay : 0.8 m
All dimensions have tolerance +-7 %
Marking
no. of cores x conductor size mm2 Cu/XLPE/LS/PVC Voltage grade V Standard MADE IN QATAR QICC - Nexans Year Meters
Custom marking available
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
Note: On request we are delivering three single core laid up cables on one drum
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
