IEC MV, XLPE Insulation, CTS, STA, PVC (3C)
IEC MV, XLPE Insulation, CTS, STA, PVC (3C)
Multi-core XLPE-insulated cables with PVC sheath
Read more3x120
Nexans ref. 23120CXTVTB09DD0
- Conductor cross-section: 120 mm²
- Approximate weight: 5750 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x120
Nexans ref. 23120CXTVTB09ED0
- Conductor cross-section: 120 mm²
- Approximate weight: 6130 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x120
Nexans ref. 23120CXTVTB09GD0
- Conductor cross-section: 120 mm²
- Approximate weight: 6640 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x120
Nexans ref. 23120CXTVTB09HD0
- Conductor cross-section: 120 mm²
- Approximate weight: 7110 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x120
Nexans ref. 23120CXTVTB09JD0
- Conductor cross-section: 120 mm²
- Approximate weight: 9500 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x150
Nexans ref. 23150CXTVTB09DD0
- Conductor cross-section: 150 mm²
- Approximate weight: 6605 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x150
Nexans ref. 23150CXTVTB09ED0
- Conductor cross-section: 150 mm²
- Approximate weight: 7010 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x150
Nexans ref. 23150CXTVTB09GD0
- Conductor cross-section: 150 mm²
- Approximate weight: 7560 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x150
Nexans ref. 23150CXTVTB09HD0
- Conductor cross-section: 150 mm²
- Approximate weight: 8760 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x150
Nexans ref. 23150CXTVTB09JD0
- Conductor cross-section: 150 mm²
- Approximate weight: 10510 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x185
Nexans ref. 23185CXTVTB09DD0
- Conductor cross-section: 185 mm²
- Approximate weight: 7630 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x185
Nexans ref. 23185CXTVTB09ED0
- Conductor cross-section: 185 mm²
- Approximate weight: 8040 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x185
Nexans ref. 23185CXTVTB09GD0
- Conductor cross-section: 185 mm²
- Approximate weight: 9330 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x185
Nexans ref. 23185CXTVTB09HD0
- Conductor cross-section: 185 mm²
- Approximate weight: 9870 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x185
Nexans ref. 23185CXTVTB09JD0
- Conductor cross-section: 185 mm²
- Approximate weight: 11710 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x240
Nexans ref. 23240CXTVTB09DD0
- Conductor cross-section: 240 mm²
- Approximate weight: 9160 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x240
Nexans ref. 23240CXTVTB09ED0
- Conductor cross-section: 240 mm²
- Approximate weight: 10330 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x240
Nexans ref. 23240CXTVTB09GD0
- Conductor cross-section: 240 mm²
- Approximate weight: 10930 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x240
Nexans ref. 23240CXTVTB09HD0
- Conductor cross-section: 240 mm²
- Approximate weight: 11480 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x240
Nexans ref. 23240CXTVTB09JD0
- Conductor cross-section: 240 mm²
- Approximate weight: 13385 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x25
Nexans ref. 23025CXTVTB09DD0
- Conductor cross-section: 25 mm²
- Approximate weight: 2390 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x25
Nexans ref. 23025CXTVTB09ED0
- Conductor cross-section: 25 mm²
- Approximate weight: 2960 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x25
Nexans ref. 23025CXTVTB09GD0
- Conductor cross-section: 25 mm²
- Approximate weight: 3420 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x300
Nexans ref. 23300CXTVTB09DD0
- Conductor cross-section: 300 mm²
- Approximate weight: 11980 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x300
Nexans ref. 23300CXTVTB09ED0
- Conductor cross-section: 300 mm²
- Approximate weight: 12360 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x300
Nexans ref. 23300CXTVTB09GD0
- Conductor cross-section: 300 mm²
- Approximate weight: 12950 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x300
Nexans ref. 23300CXTVTB09HD0
- Conductor cross-section: 300 mm²
- Approximate weight: 13420 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x300
Nexans ref. 23300CXTVTB09JD0
- Conductor cross-section: 300 mm²
- Approximate weight: 14325 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x35
Nexans ref. 23035CXTVTB09DD0
- Conductor cross-section: 35 mm²
- Approximate weight: 2730 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x35
Nexans ref. 23035CXTVTB09ED0
- Conductor cross-section: 35 mm²
- Approximate weight: 3380 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x35
Nexans ref. 23035CXTVTB09GD0
- Conductor cross-section: 35 mm²
- Approximate weight: 3750 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x35
Nexans ref. 23035CXTVTB09HD0
- Conductor cross-section: 35 mm²
- Approximate weight: 4200 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x400
Nexans ref. 23400CXTVTB09DD0
- Conductor cross-section: 400 mm²
- Approximate weight: 14320 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x400
Nexans ref. 23400CXTVTB09ED0
- Conductor cross-section: 400 mm²
- Approximate weight: 14560 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x400
Nexans ref. 23400CXTVTB09GD0
- Conductor cross-section: 400 mm²
- Approximate weight: 15075 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x400
Nexans ref. 23400CXTVTB09HD0
- Conductor cross-section: 400 mm²
- Approximate weight: 15550 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x400
Nexans ref. 23400CXTVTB09JD0
- Conductor cross-section: 400 mm²
- Approximate weight: 17530 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x50
Nexans ref. 23050CXTVTB09DD0
- Conductor cross-section: 50 mm²
- Approximate weight: 3480 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x50
Nexans ref. 23050CXTVTB09ED0
- Conductor cross-section: 50 mm²
- Approximate weight: 3825 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x50
Nexans ref. 23050CXTVTB09GD0
- Conductor cross-section: 50 mm²
- Approximate weight: 4210 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x50
Nexans ref. 23050CXTVTB09HD0
- Conductor cross-section: 50 mm²
- Approximate weight: 4685 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x50
Nexans ref. 23050CXTVTB09JD0
- Conductor cross-section: 50 mm²
- Approximate weight: 6705 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x70
Nexans ref. 23070CXTVTB09DD0
- Conductor cross-section: 70 mm²
- Approximate weight: 4210 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x70
Nexans ref. 23070CXTVTB09ED0
- Conductor cross-section: 70 mm²
- Approximate weight: 4555 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x70
Nexans ref. 23070CXTVTB09GD0
- Conductor cross-section: 70 mm²
- Approximate weight: 5040 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x70
Nexans ref. 23070CXTVTB09HD0
- Conductor cross-section: 70 mm²
- Approximate weight: 5455 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x70
Nexans ref. 23070CXTVTB09JD0
- Conductor cross-section: 70 mm²
- Approximate weight: 7730 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x95
Nexans ref. 23095CXTVTB09DD0
- Conductor cross-section: 95 mm²
- Approximate weight: 4995 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x95
Nexans ref. 23095CXTVTB09ED0
- Conductor cross-section: 95 mm²
- Approximate weight: 5405 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x95
Nexans ref. 23095CXTVTB09GD0
- Conductor cross-section: 95 mm²
- Approximate weight: 5870 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x95
Nexans ref. 23095CXTVTB09HD0
- Conductor cross-section: 95 mm²
- Approximate weight: 6350 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x95
Nexans ref. 23095CXTVTB09JD0
- Conductor cross-section: 95 mm²
- Approximate weight: 8640 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
Description
Description
Standards
-
InternationalIEC 60332-1; IEC 60502-2
Application
These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial application where chemical and mechanical protections are needed. This group is complying with IEC 60502-2 .

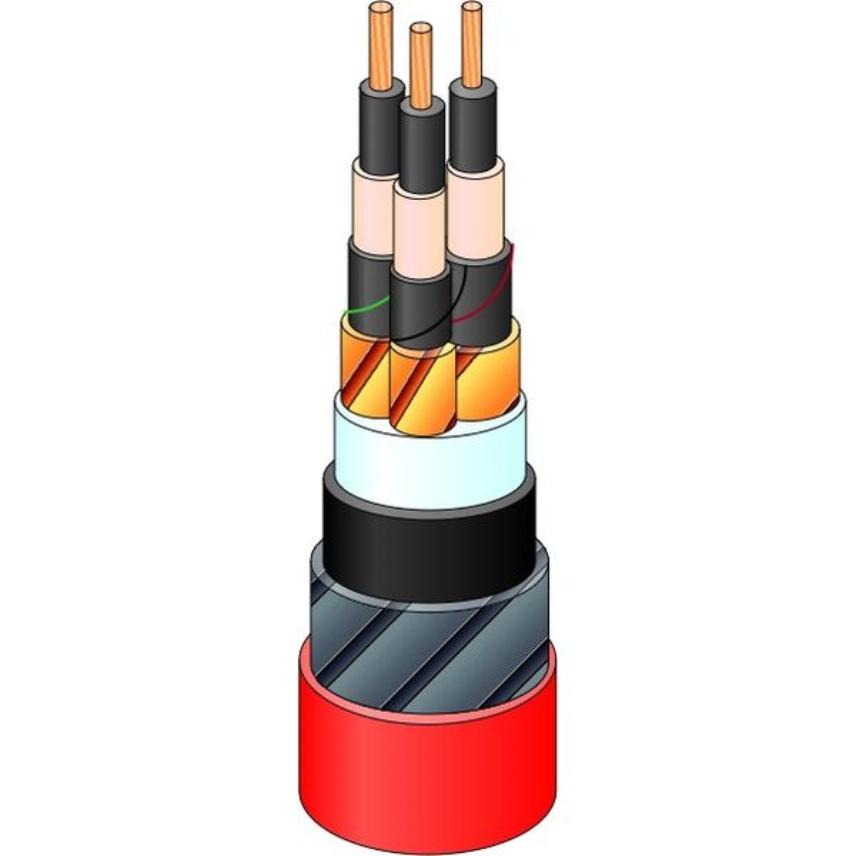

Design
1. Conductor
Stranded bare copper class 2 acc. to IEC 60228 or equivalent
2. Insulation
Triple extruded Inner semi conductive layer - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer
3. Metalic Screen
Copper tape screen
4. Inner Sheathing or Bedding
Extruded PVC
5. Armour
Galvanized Steel Tape Armour "STA"
6. Outer Sheath
Polyvinyl Chloride 'PVC'
Options :
- Flame retardant : 'CAT A, CAT B, CATC' to IEC60332 or equivalent.
- Ozone resistant.
- Oil resistant.
- Anti termite.
Sheathing layers can be Halogen Free Flame Retardant "HFFR", or Polyethylene '"PE'
Installation Conditions:
1.Air Temperature : 30 Deg.
2.Ground Temperature : 20 Deg
3.Soil Thermal Resistivity : 1.5 km/w
4.Depth of lay : 0.8 m
All dimensions have tolerance +-7 %
Marking
no. of cores x conductor size mm2 Cu/XLPE/STA/PVC Voltage grade V Standard MADE IN QATAR QICC - Nexans Year Meters
Custom marking available
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
Note: On request we are delivering three single core laid up cables on one drum
