IEC/BS MV, XLPE Insulation, CTS, SWA, PVC (3C)
IEC/BS MV, XLPE Insulation, CTS, SWA, PVC (3C)
Multi-core XLPE-insulated cables with PVC sheath
Read more3x120
Nexans ref. 23120CXTVSB09DD0
- Conductor cross-section: 120 mm²
- Approximate weight: 7275 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x120
Nexans ref. 23120CXTVSB09ED0
- Conductor cross-section: 120 mm²
- Approximate weight: 7750 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x120
Nexans ref. 23120CXTVSB09GD0
- Conductor cross-section: 120 mm²
- Approximate weight: 8410 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x120
Nexans ref. 23120CXTVSB09HD0
- Conductor cross-section: 120 mm²
- Approximate weight: 8995 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x120
Nexans ref. 23120CXTVSB09JD0
- Conductor cross-section: 120 mm²
- Approximate weight: 11450 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x150
Nexans ref. 23150CXTVSB09DD0
- Conductor cross-section: 150 mm²
- Approximate weight: 8600 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x150
Nexans ref. 23150CXTVSB09ED0
- Conductor cross-section: 150 mm²
- Approximate weight: 9140 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x150
Nexans ref. 23150CXTVSB09GD0
- Conductor cross-section: 150 mm²
- Approximate weight: 9760 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x150
Nexans ref. 23150CXTVSB09HD0
- Conductor cross-section: 150 mm²
- Approximate weight: 11420 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x150
Nexans ref. 23150CXTVSB09JD0
- Conductor cross-section: 150 mm²
- Approximate weight: 13055 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x185
Nexans ref. 23185CXTVSB09DD0
- Conductor cross-section: 185 mm²
- Approximate weight: 9950 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x185
Nexans ref. 23185CXTVSB09ED0
- Conductor cross-section: 185 mm²
- Approximate weight: 10485 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x185
Nexans ref. 23185CXTVSB09GD0
- Conductor cross-section: 185 mm²
- Approximate weight: 12175 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x185
Nexans ref. 23185CXTVSB09HD0
- Conductor cross-section: 185 mm²
- Approximate weight: 12880 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x185
Nexans ref. 23185CXTVSB09JD0
- Conductor cross-section: 185 mm²
- Approximate weight: 14545 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x240
Nexans ref. 23240CXTVSB09DD0
- Conductor cross-section: 240 mm²
- Approximate weight: 11945 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x240
Nexans ref. 23240CXTVSB09ED0
- Conductor cross-section: 240 mm²
- Approximate weight: 13470 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x240
Nexans ref. 23240CXTVSB09GD0
- Conductor cross-section: 240 mm²
- Approximate weight: 14270 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x240
Nexans ref. 23240CXTVSB09HD0
- Conductor cross-section: 240 mm²
- Approximate weight: 14990 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x240
Nexans ref. 23240CXTVSB09JD0
- Conductor cross-section: 240 mm²
- Approximate weight: 16630 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x25
Nexans ref. 23025CXTVSB09DD0
- Conductor cross-section: 25 mm²
- Approximate weight: 3040 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x25
Nexans ref. 23025CXTVSB09ED0
- Conductor cross-section: 25 mm²
- Approximate weight: 3770 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x25
Nexans ref. 23025CXTVSB09GD0
- Conductor cross-section: 25 mm²
- Approximate weight: 4330 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x300
Nexans ref. 23300CXTVSB09DD0
- Conductor cross-section: 300 mm²
- Approximate weight: 15640 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x300
Nexans ref. 23300CXTVSB09ED0
- Conductor cross-section: 300 mm²
- Approximate weight: 16130 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x300
Nexans ref. 23300CXTVSB09GD0
- Conductor cross-section: 300 mm²
- Approximate weight: 16900 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x300
Nexans ref. 23300CXTVSB09HD0
- Conductor cross-section: 300 mm²
- Approximate weight: 17510 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x300
Nexans ref. 23300CXTVSB09JD0
- Conductor cross-section: 300 mm²
- Approximate weight: 19300 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x35
Nexans ref. 23035CXTVSB09DD0
- Conductor cross-section: 35 mm²
- Approximate weight: 3450 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x35
Nexans ref. 23035CXTVSB09ED0
- Conductor cross-section: 35 mm²
- Approximate weight: 4280 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x35
Nexans ref. 23035CXTVSB09GD0
- Conductor cross-section: 35 mm²
- Approximate weight: 4740 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x35
Nexans ref. 23035CXTVSB09HD0
- Conductor cross-section: 35 mm²
- Approximate weight: 5310 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x400
Nexans ref. 23400CXTVSB09DD0
- Conductor cross-section: 400 mm²
- Approximate weight: 19120 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x400
Nexans ref. 23400CXTVSB09ED0
- Conductor cross-section: 400 mm²
- Approximate weight: 19400 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x400
Nexans ref. 23400CXTVSB09GD0
- Conductor cross-section: 400 mm²
- Approximate weight: 20070 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x400
Nexans ref. 23400CXTVSB09HD0
- Conductor cross-section: 400 mm²
- Approximate weight: 20705 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x400
Nexans ref. 23400CXTVSB09JD0
- Conductor cross-section: 400 mm²
- Approximate weight: 22225 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x50
Nexans ref. 23050CXTVSB09DD0
- Conductor cross-section: 50 mm²
- Approximate weight: 4410 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x50
Nexans ref. 23050CXTVSB09ED0
- Conductor cross-section: 50 mm²
- Approximate weight: 4840 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x50
Nexans ref. 23050CXTVSB09GD0
- Conductor cross-section: 50 mm²
- Approximate weight: 5330 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x50
Nexans ref. 23050CXTVSB09HD0
- Conductor cross-section: 50 mm²
- Approximate weight: 5920 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x50
Nexans ref. 23050CXTVSB09JD0
- Conductor cross-section: 50 mm²
- Approximate weight: 8080 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x70
Nexans ref. 23070CXTVSB09DD0
- Conductor cross-section: 70 mm²
- Approximate weight: 5330 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x70
Nexans ref. 23070CXTVSB09ED0
- Conductor cross-section: 70 mm²
- Approximate weight: 5750 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x70
Nexans ref. 23070CXTVSB09GD0
- Conductor cross-section: 70 mm²
- Approximate weight: 6370 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x70
Nexans ref. 23070CXTVSB09HD0
- Conductor cross-section: 70 mm²
- Approximate weight: 6900 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x70
Nexans ref. 23070CXTVSB09JD0
- Conductor cross-section: 70 mm²
- Approximate weight: 9300 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3x95
Nexans ref. 23095CXTVSB09DD0
- Conductor cross-section: 95 mm²
- Approximate weight: 6305 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
3x95
Nexans ref. 23095CXTVSB09ED0
- Conductor cross-section: 95 mm²
- Approximate weight: 6835 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3x95
Nexans ref. 23095CXTVSB09GD0
- Conductor cross-section: 95 mm²
- Approximate weight: 7415 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
3x95
Nexans ref. 23095CXTVSB09HD0
- Conductor cross-section: 95 mm²
- Approximate weight: 8020 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3x95
Nexans ref. 23095CXTVSB09JD0
- Conductor cross-section: 95 mm²
- Approximate weight: 10400 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
Description
Description
Standards
-
InternationalIEC 60332-1; IEC 60502-2
-
NationalBS 6622
Application
These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial application where chemical and mechanical protections are needed. This group is complying with IEC 60502-2 or BS 6622.

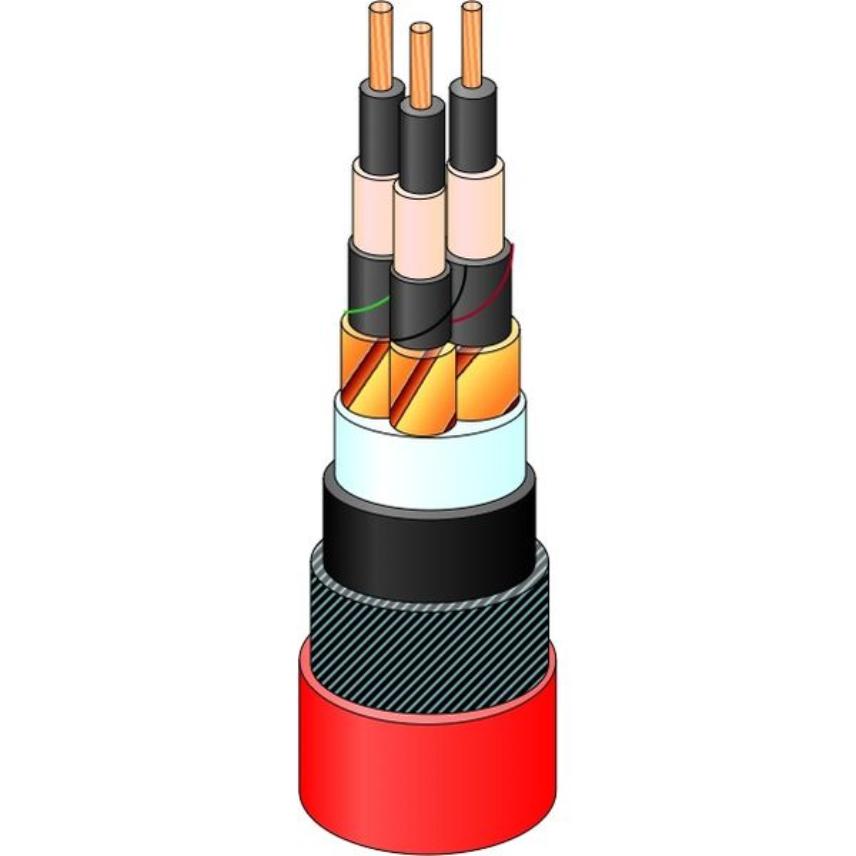

Design
1. Conductor
Stranded bare copper class 2 acc. to IEC 60228 or equivalent
2. Insulation
Triple extruded Inner semi conductive layer - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer
3. Metalic Screen
Copper tape screen
4. Inner Sheathing or Bedding
Extruded PVC
5. Armour
Galvanized Steel Wire Armour "SWA"
6. Outer Sheath
Polyvinyl Chloride 'PVC'
Options :
- Flame retardant : 'CAT A, CAT B, CATC' to IEC60332 or equivalent.
- Ozone resistant.
- Oil resistant.
- Anti termite.
Sheathing layers can be Halogen Free Flame Retardant "HFFR", or Polyethylene '"PE'
Installation Conditions:
1.Air Temperature : 30 Deg.
2.Ground Temperature : 20 Deg
3.Soil Thermal Resistivity : 1.5 km/w
4.Depth of lay : 0.8 m
All dimensions have tolerance +-7 %
Marking
no. of cores x conductor size mm2 Cu/XLPE/SWA/PVC Voltage grade V Standard MADE IN QATAR QICC - Nexans Year Meters
Custom marking available
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
Note: On request we are delivering three single core laid up cables on one drum
