Bonding cable MV, XLPE, PVC (1C)
Bonding cable MV, XLPE, PVC (1C)
Single-core XLPE-insulated cables with PVC sheath
Read moreDescription
Description
Standards
-
InternationalIEC 60332-1; IEC 60502-2
-
NationalBS 6622
Application
These Medium Voltage power cables are used for High Voltage power cable in conjunction with link boxes to complete the desired bonding scheme.
They are well adapted to underground use in industrial application where chemical and mechanical protections are needed. This group is complying with IEC 60502-2 and Kahramaa.

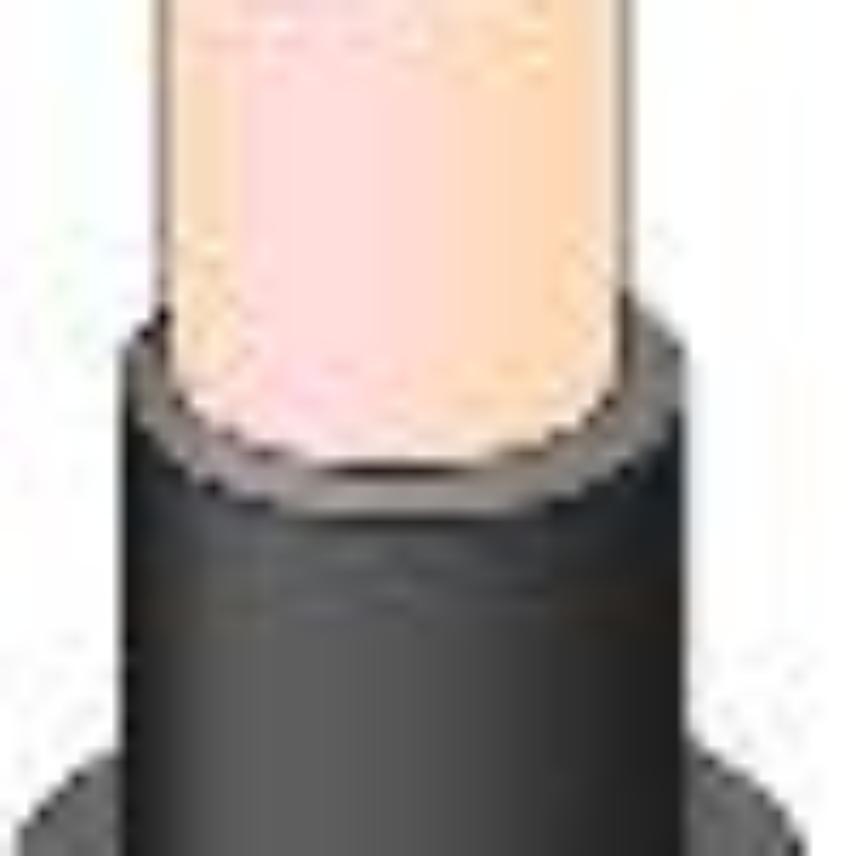

Design
1. Conductor
Stranded bare copper class 2 acc. to IEC 60228 or equivalent
2. Insulation
Triple extruded Inner semi conductive layer - Cross Linked Polyethylene 'XLPE' - Outer semi conductive layer
3. Outer Sheath
Polyvinyl Chloride 'PVC'
Options :
- Flame retardant to IEC60332 or equivalent.
- Graphite coating
Installation Conditions:
1.Air Temperature : 30 Deg.
2.Ground Temperature : 20 Deg
3.Soil Thermal Resistivity : 1.5 km/w
4.Depth of lay : 0.8 m
All dimensions have tolerance +-7 %
Marking
ELECTRIC CABLE –BONDING LEAD no. of cores x conductor size mm2 Cu/XLPE/PVC Voltage grade V Standard MADE IN QATAR QICC - Nexans Year Meters
Custom marking available
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
Note: On request we are delivering three single core laid up cables on one drum
