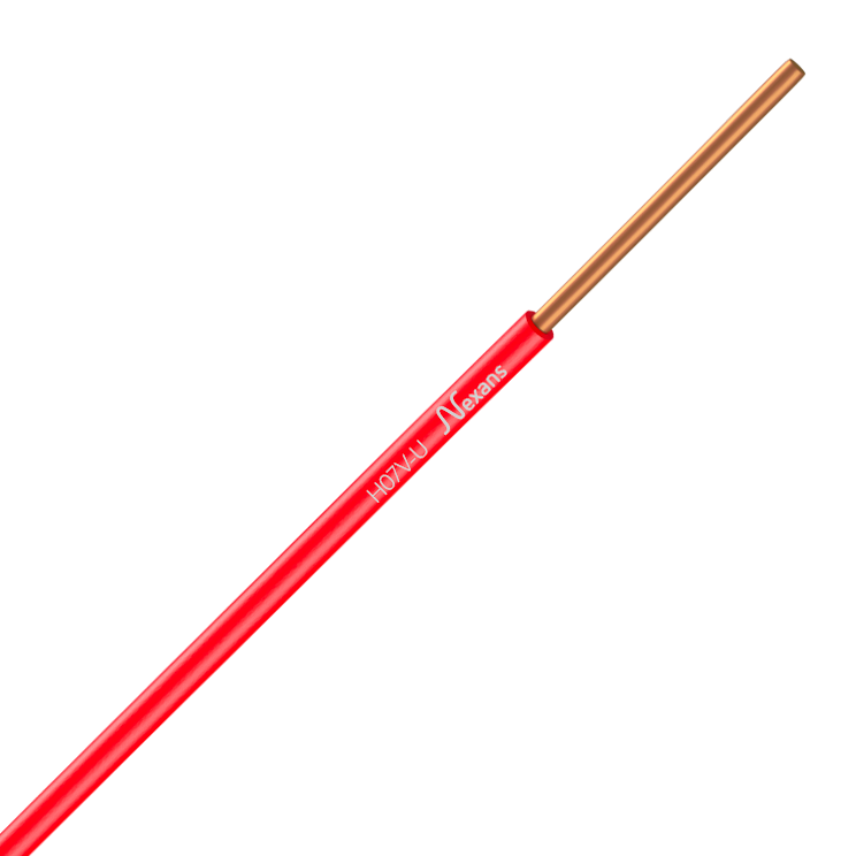

Nexans H07VU 1x1,5 RED C5m
Nexans H07VU 1x1,5 RED C5m
H07V-U conductors are used for fixed protected installations : i.e. ligths or control gear (from offices, domestic or commercial buildings ...) with voltage ≤ 1000V AC or ≤ 750 V DC . ..
Read more- Nexans ref. : 10097289
- EAN : 3505390073742
Description
Description
Standards
-
ProductEN 50525-2-31; HD 21.3; IEC 60227-1; NF C32-201/3
Application
Nexans H07V-U conductors are used for fixed protected installations : i.e. ligths or control gear (from offices, domestic or commercial buildings ...) with voltage ≤ 1000V AC or ≤ 750 V DC . ...
Installation
Open air, in conduit, in cable trunking, in cable ducting. Thanks to the sliding properties of insulation, H07V-U is made to facilitate processing while pulling in.
Design
- Conductor
Bare copper class 1 - Insulation
PVC
Différent colors.
Marking
S.Y + USE «har» H07V-U factory number
Voltage drop
Calculated with Cos phi = 0,8
Permissible current and voltage drop are given
For conductor laid alone in insulating tube on a wall Temperature = 30°C. Permanent operation
If conditions are different, apply correction factors from NF C 15-100 standard or other equivalent national standard.
Gammes et couleurs disponibles pour PASSEO
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
