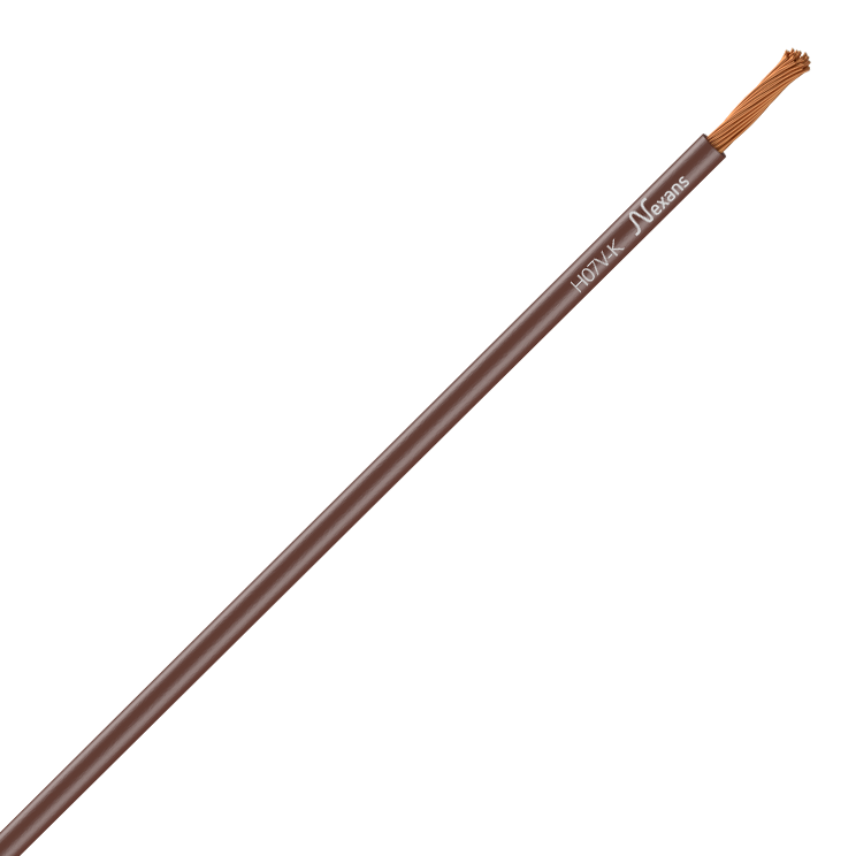

CABLE UNIPOLAR 1x1,5 MARRÓN 10M
CABLE UNIPOLAR 1x1,5 MARRÓN 10M
Flexible conductors, without sheath, PVC insulation for general use
Read more- Nexans ref. : 10264581
Description
Description
Standards
-
ProductEN 50525-2-31; HD 21.3; IEC 60227-2; NF C32-201/3
Application
Nexans H07V-K cores are principally used for panels and cabinets stranding.
Installation
Open air, or in conduits, or trunking.
Marking
- For section between 0,75 and 4 mm² : S.Y + USE HAR N Plant
- For section above 4 mm² : S.Y + USE HAR H07VK - N° Plant
Permissible current and voltage drop are given
For conductor laid alone in insulating tube on a wall Temperature = 30°C. Permanent operation If conditions are differents, apply correction factors from NF C 15-100 standard or other equivalent national standard.
Voltage drop
Calculated with Cos ø = 0.8
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Sheath colour
-
Conductor flexibility
-
Conductor material
-
Conductor shape
-
Insulation
-
Lead free
-
Dimensional characteristics
Dimensional characteristics
Number of cores
-
Conductor cross-section
- mm²
Conductor diameter
- mm
Minimum outer diameter
2.8 mm
Maximum outer diameter
- mm
Approximate weight
19 kg/km
Nominal outer diameter
- mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
450/750 V
Permissible current (one phase)
- A
Permissible current rating (3 conductors)
- A
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
-
Cable flexibility
-
Usage characteristics
Usage characteristics
Max. conductor temperature in service
- °C
Packaging
-
Short-circuit max. conductor temperature
- °C
Length
- m
Operating temperature, range
- °C
Flame retardant
C2, NF C 32-070 & EN 50265-2-1
Weather resistance
No
Chemical resistance
-
Water proof
-
Laying operation bending radius
- mm
Minimum static operating bending radius
- mm
Resources
Resources
Documentation
Certification d'homologation (pdf)
pdf — 213.3 kB
PEP ECOPASSPORT H07V K 1.5 6MM ENG
pdf — 4.3 MB
