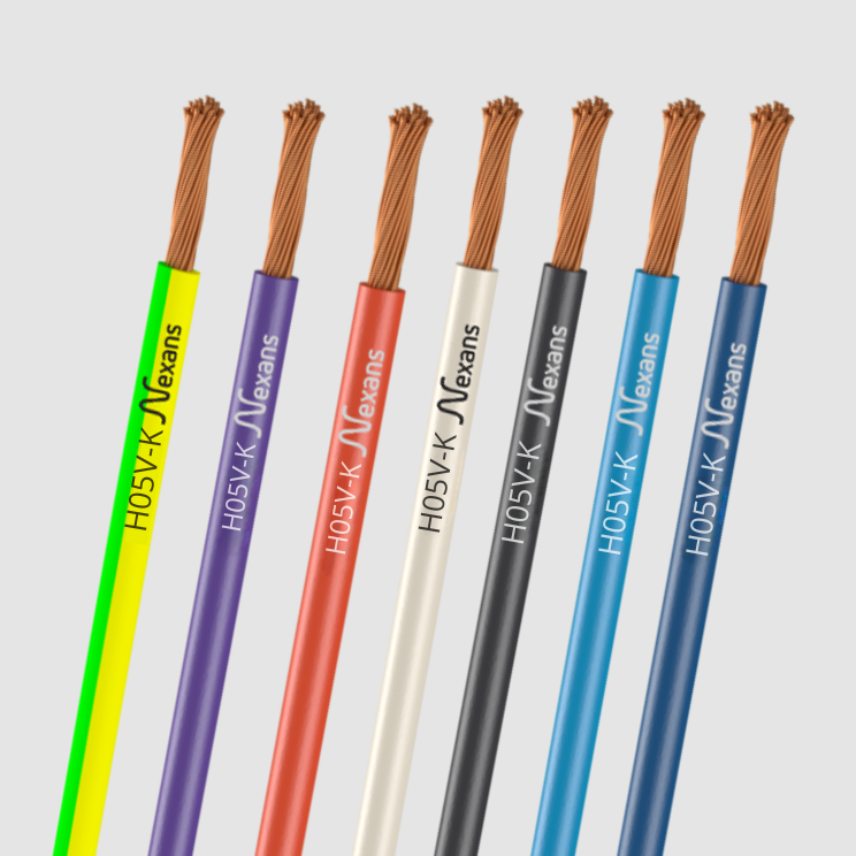

Nexans H05V-K VISIBOX 1x1 BLACK C100m
Nexans ref. 10185121 - Country ref. 01272053
- Packaging: Coil (100m)
- Sheath colour: Black - RAL 9004
- Nominal outer diameter: 3.0 mm
Nexans H05V-K VISIBOX 1x1 BN C100m To be removed
Nexans ref. 10141612 - Country ref. 01272050
- Packaging: Coil (100m)
- Sheath colour: Night Blue - RAL 5003
- Nominal outer diameter: 3.0 mm
Nexans H05V-K VISIBOX 1x1 BROWN C100m
Nexans ref. 10185119 - Country ref. 01272051
- Packaging: Coil (100m)
- Sheath colour: Brown - RAL 8002
- Nominal outer diameter: 3.0 mm
Nexans H05V-K VISIBOX 1x1 DARK BLUE C100m
Nexans ref. 10185117 - Country ref. 01272049
- Packaging: Coil (100m)
- Sheath colour: Dark Blue - RAL 5010
- Nominal outer diameter: 3.0 mm
Nexans H05V-K VISIBOX 1x1 GREY C100m
Nexans ref. 10185120 - Country ref. 01272052
- Packaging: Coil (100m)
- Sheath colour: Grey - RAL 7000
- Nominal outer diameter: 3.0 mm
Nexans H05V-K VISIBOX 1x1 IVOIRY C100m To be removed
Nexans ref. 10185118 - Country ref. 01272045
- Packaging: Coil (100m)
- Sheath colour: Ivory White - RAL 1015
- Nominal outer diameter: 3.0 mm
Nexans H05V-K VISIBOX 1x1 LIGHT BLUE C100m To be removed
Nexans ref. 10185116 - Country ref. 01272047
- Packaging: Coil (100m)
- Sheath colour: Ligth Blue - RAL 5012
- Nominal outer diameter: 3.0 mm
Nexans H05V-K VISIBOX 1x1 MEDIUM BLUE C100m
Nexans ref. 10141611 - Country ref. 01272048
- Packaging: Coil (100m)
- Sheath colour: Medium Blue - RAL 5015
- Nominal outer diameter: 3.0 mm
Nexans H05V-K VISIBOX 1x1 PURPLE C100m To be removed
Nexans ref. 10185124 - Country ref. 01272056
- Packaging: Coil (100m)
- Sheath colour: Violet - RAL 4005
- Nominal outer diameter: 3.0 mm

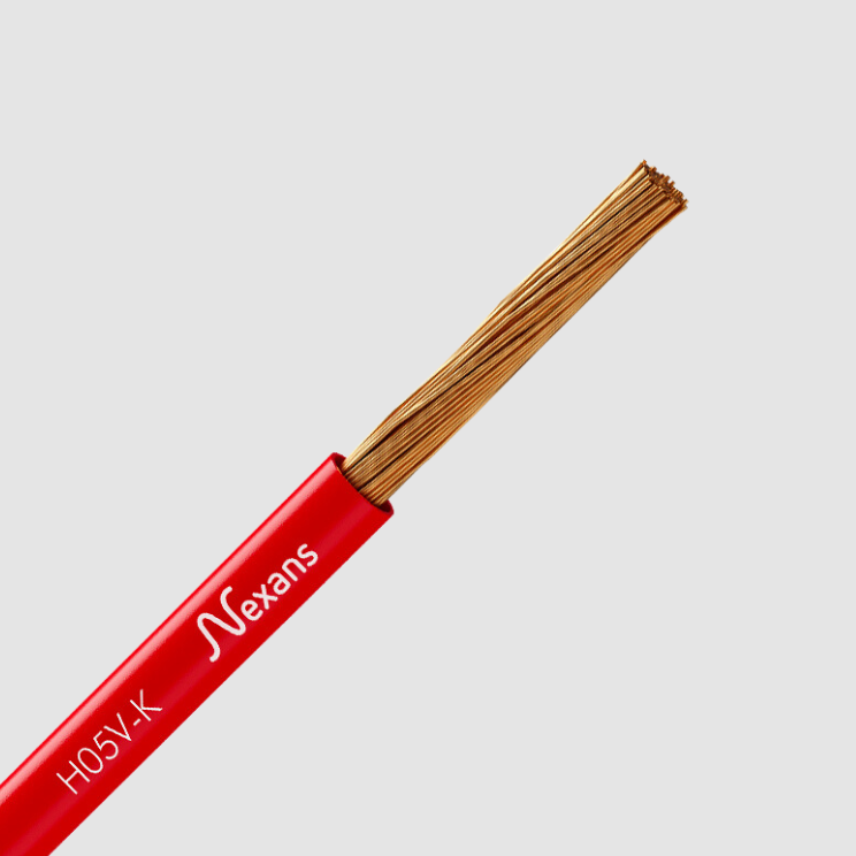

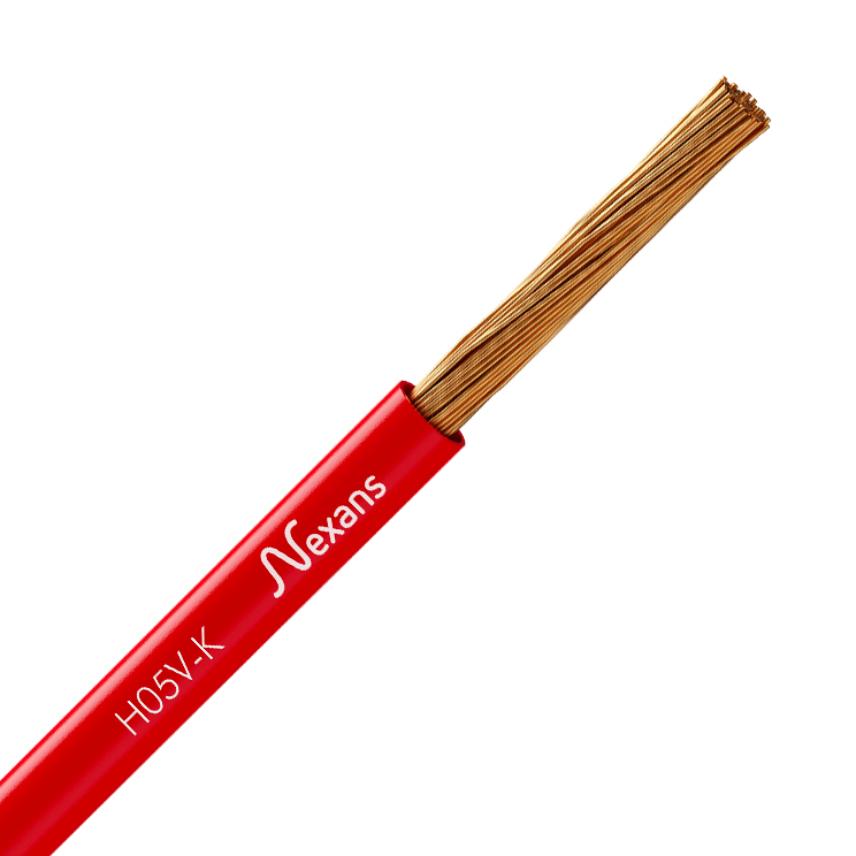

Nexans H05V-K VISIBOX 1x1 RED C100m
Nexans ref. 10185123 - Country ref. 01272055
- Packaging: Coil (100m)
- Sheath colour: Red - RAL 3031
- Nominal outer diameter: 2.5 mm
Nexans H05V-K VISIBOX 1x1 VERY LIGHT BLUE C100m To be removed
Nexans ref. 10141609 - Country ref. 01272046
- Packaging: Coil (100m)
- Sheath colour: Very Light Blue - RAL 5024
- Nominal outer diameter: 3.0 mm
Nexans H05V-K VISIBOX 1G1 GREEN/YELLOW C100m
Nexans ref. 10185114 - Country ref. 01272057
- Packaging: Coil (100m)
- Sheath colour: Green - RAL 6024 /Yelow - RAL1012
- Nominal outer diameter: 3.0 mm
Description
Description
Standards
-
ProductEN 50525-2-31; HD 21.3; IEC 60227-6; NF C32-201/3
Application
Nexans H05V-K cores are used for internal equipment wiring.
Installation
Open air, or in conduits, or trunking.
Marking
S.Y + USE HAR H05VK - N° plant.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Flexible class 5
Conductor material
Bare copper
Conductor shape
Circular
Insulation
PVC
Lead free
-
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
1 mm²
Approximate weight
14 kg/km
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
300/500 V
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Low
Cable flexibility
Flexible
Usage characteristics
Usage characteristics
Max. conductor temperature in service
70 °C
Short-circuit max. conductor temperature
160 °C
Operating temperature, range
-5 ... 60 °C
Flame retardant
C2, NF C 32-070
Weather resistance
No
Chemical resistance
Accidental
Water proof
Low
Packaging
Coil
Length
100 m
