Nexans H03VVH2-F
Nexans H03VVH2-F

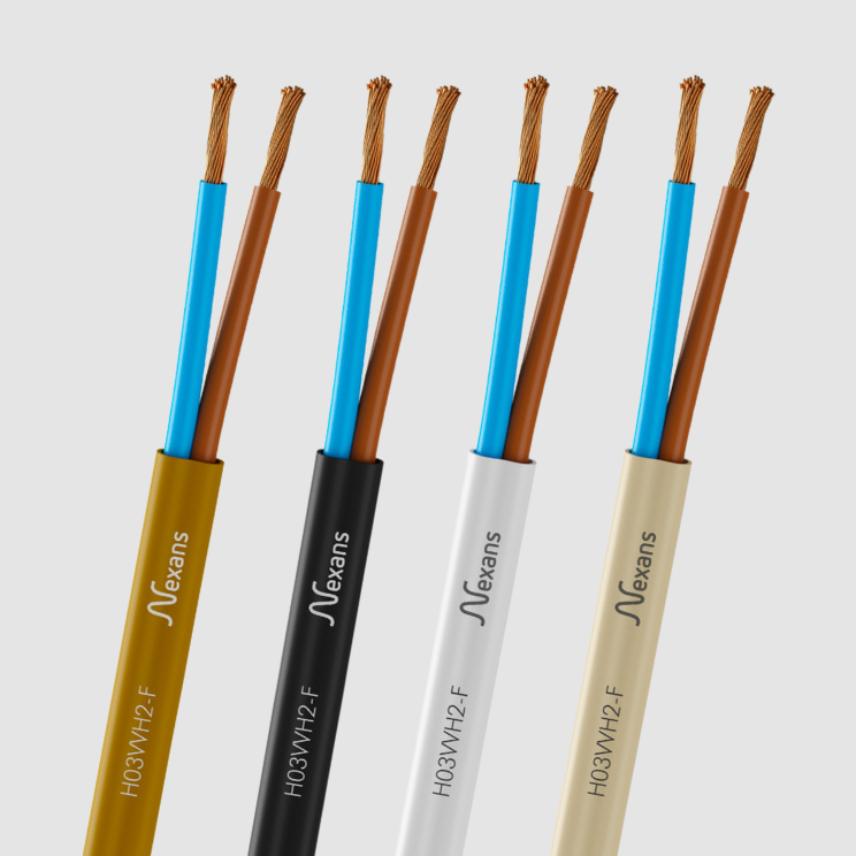

Flexible cable, insulation and outer sheath in PVC, domestic use.
Read moreH03VVH2-F 2x0.75 Black Coil of 25 m (in Box of 20 coils)
Nexans ref. 10041386 - Country ref. 01231625
- Packaging: Coil (500m)
- Sheath colour: Black
H03VVH2-F 2x0.75 Old Gold Coil of 25 m (In box of 20 coils)
Nexans ref. 10053853 - Country ref. 01231623
- Packaging: Coil (500m)
- Sheath colour: Old gold

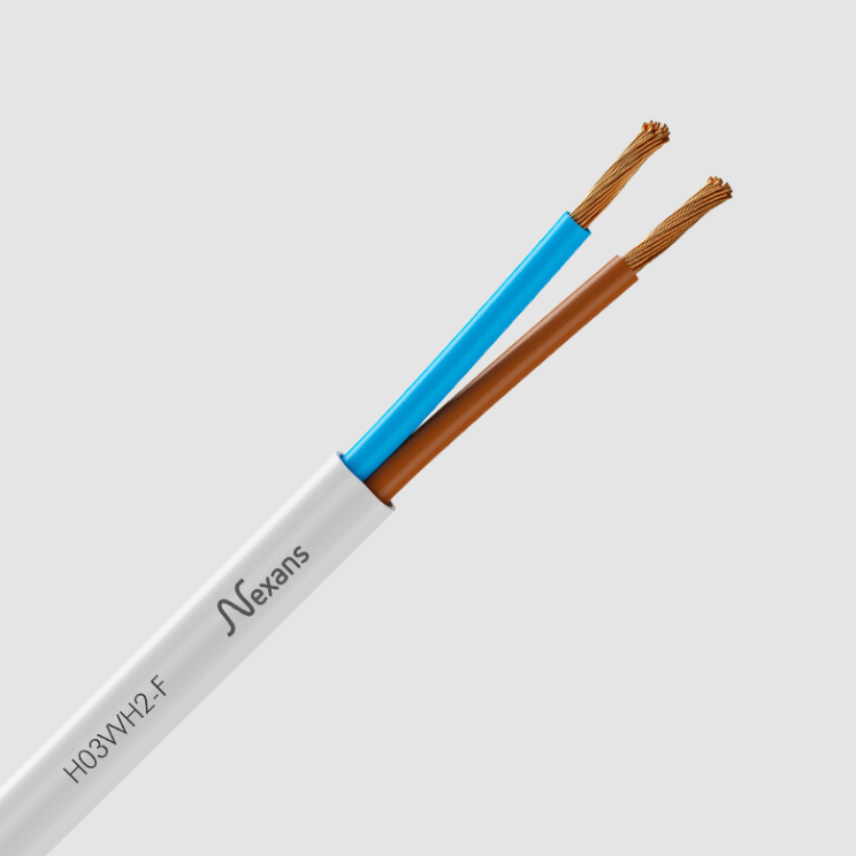

H03VVH2-F 2x0.75 White Coil of 25 m (in Box of 20 coils)
Nexans ref. 10033771 - Country ref. 01231626
- Packaging: Coil (500m)
- Sheath colour: White
Description
Description
Standards
-
ProductEN 50525-2-11; HD 21.5; IEC 60227-1; NF C32-201/5; NF C32-201/5
Application
Nexans H03VVH2-F cables are used for light portable domestic appliances, but are not suitable for heating and cooking appliances.
Installation
Open air.
Core colours
2 cores = Brown+ Light blue
Marking
S.Y + USE 'harH03VVH2-F N° Usine
For more information on Bipolar extension cords 6 A, see Related information on the bottom of the page.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Flexible class 5
Conductor material
Bare copper
Conductor shape
Oblong shape
Insulation
PVC
Lead free
Yes
Outer sheath
PVC inner filling sheath
Dimensional characteristics
Dimensional characteristics
Approximate weight
32 kg/km
Conductor cross-section
0.75 mm²
External dimensions
3,80 (+/-0,3mm) + 5,70 (+/-0,5mm)
Number of cores
2
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
300 / 300 V
Permissible current rating in open air
6 A
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Low
Cable flexibility
Flexible
Usage characteristics
Usage characteristics
Max. conductor temperature in service
- °C
Short-circuit max. conductor temperature
150 °C
Operating temperature, range
-5 ... 60 °C
Flame retardant
C2, NF C 32-070
Weather resistance
Good
Chemical resistance
Accidental
Water proof
Accidental
Minimum static operating bending radius
11.7 mm
Packaging
Box of 20 coils of 25 m
