ALSECURE® BS LV, XLPE Insulation, SWA, HFFR 0.6/1 kV
ALSECURE® BS LV, XLPE Insulation, SWA, HFFR 0.6/1 kV

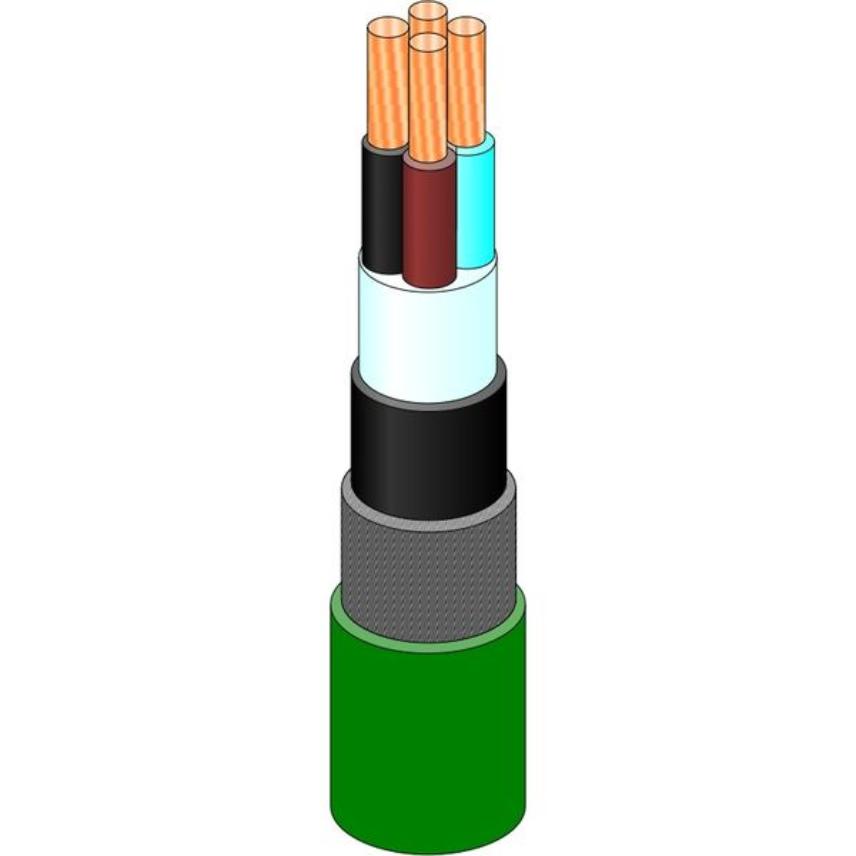

Galvanized steel wire armoured LV cable, HFFR sheathed for fixed installations. Rated voltage 0.6/1 KV
Read more2x1.5
Nexans ref. 22002SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
- Approximate weight: 240 kg/km
- Nominal outer diameter: 11.0 mm
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 25 A
- Permissible current rating when buried: 23 A
- Voltage drop, 3 conductors: 22.8 V/A.km
2x10
Nexans ref. 22010SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 2
- Conductor cross-section: 10 mm²
- Approximate weight: 600 kg/km
- Nominal outer diameter: 16.0 mm
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 78 A
- Permissible current rating when buried: 65 A
- Voltage drop, 3 conductors: 3.5 V/A.km
2x120
Nexans ref. 22120SXZHSH30BD0!
- Conductor shape: Circular
- Number of cores: 2
- Conductor cross-section: 120 mm²
- Approximate weight: 3610 kg/km
- Nominal outer diameter: 37.0 mm
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 353 A
- Permissible current rating when buried: 257 A
- Voltage drop, 3 conductors: 0.37 V/A.km
2x150
Nexans ref. 22150SXZHSH30BD0!
- Conductor shape: Circular
- Number of cores: 2
- Conductor cross-section: 150 mm²
- Approximate weight: 4280 kg/km
- Nominal outer diameter: 40.0 mm
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 406 A
- Permissible current rating when buried: 287 A
- Voltage drop, 3 conductors: 0.3 V/A.km
2x16
Nexans ref. 22016SXZHSH30BD0!
- Conductor shape: Circular
- Number of cores: 2
- Conductor cross-section: 16 mm²
- Approximate weight: 750 kg/km
- Nominal outer diameter: 18.0 mm
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 99 A
- Permissible current rating when buried: 84 A
- Voltage drop, 3 conductors: 2.2 V/A.km
2x185
Nexans ref. 22185SXZHSH30BD0!
- Conductor shape: Circular
- Number of cores: 2
- Conductor cross-section: 185 mm²
- Approximate weight: 5540 kg/km
- Nominal outer diameter: 46.0 mm
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 463 A
- Permissible current rating when buried: 324 A
- Voltage drop, 3 conductors: 0.26 V/A.km
2x2.5
Nexans ref. 22003SXZHSH30BS0@
- Conductor shape: Circular
- Number of cores: 2
- Conductor cross-section: 2.5 mm²
- Approximate weight: 280 kg/km
- Nominal outer diameter: 12.0 mm
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 30 A
- Voltage drop, 3 conductors: 14.0 V/A.km
2x25
Nexans ref. 22025SXZHSH30BD0!
- Conductor shape: Circular
- Number of cores: 2
- Conductor cross-section: 25 mm²
- Approximate weight: 1120 kg/km
- Nominal outer diameter: 21.0 mm
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 131 A
- Permissible current rating when buried: 107 A
- Voltage drop, 3 conductors: 1.65 V/A.km
2x35
Nexans ref. 22035SXZHSH30BD0!
- Conductor shape: Circular
- Number of cores: 2
- Conductor cross-section: 35 mm²
- Approximate weight: 1340 kg/km
- Nominal outer diameter: 23.0 mm
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 162 A
- Permissible current rating when buried: 129 A
- Voltage drop, 3 conductors: 1.15 V/A.km
2x4
Nexans ref. 22004SXZHSH30BD0!
- Conductor shape: Circular
- Number of cores: 2
- Conductor cross-section: 4 mm²
- Approximate weight: 330 kg/km
- Nominal outer diameter: 13.0 mm
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 44 A
- Permissible current rating when buried: 39 A
- Voltage drop, 3 conductors: 8.7 V/A.km
2x50
Nexans ref. 22050SXZHSH30BD0!
- Conductor shape: Circular
- Number of cores: 2
- Conductor cross-section: 50 mm²
- Approximate weight: 1680 kg/km
- Nominal outer diameter: 26.0 mm
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 197 A
- Permissible current rating when buried: 153 A
- Voltage drop, 3 conductors: 0.89 V/A.km
2x6
Nexans ref. 22006SXZHSH30BS0@
- Conductor shape: Circular
- Number of cores: 2
- Conductor cross-section: 6 mm²
- Approximate weight: 390 kg/km
- Nominal outer diameter: 14.0 mm
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 56 A
- Permissible current rating when buried: 49 A
- Voltage drop, 3 conductors: 5.9 V/A.km
2x70
Nexans ref. 22070SXZHSH30BD0!
- Conductor shape: Circular
- Number of cores: 2
- Conductor cross-section: 70 mm²
- Approximate weight: 2200 kg/km
- Nominal outer diameter: 30.0 mm
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 251 A
- Permissible current rating when buried: 188 A
- Voltage drop, 3 conductors: 0.6 V/A.km
2x95
Nexans ref. 22095SXZHSH30BD0!
- Conductor shape: Circular
- Number of cores: 2
- Conductor cross-section: 95 mm²
- Approximate weight: 3030 kg/km
- Nominal outer diameter: 34.0 mm
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 304 A
- Permissible current rating when buried: 226 A
- Voltage drop, 3 conductors: 0.45 V/A.km
3x1.5
Nexans ref. 23002SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Approximate weight: 280 kg/km
- Nominal outer diameter: 12.0 mm
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 25 A
- Permissible current rating when buried: 23 A
- Voltage drop, 3 conductors: 22.8 V/A.km
3x10
Nexans ref. 23010SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 3
- Conductor cross-section: 10 mm²
- Approximate weight: 740 kg/km
- Nominal outer diameter: 17.0 mm
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 78 A
- Permissible current rating when buried: 65 A
- Voltage drop, 3 conductors: 3.5 V/A.km
3x120
Nexans ref. 23120SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 3
- Conductor cross-section: 120 mm²
- Approximate weight: 4600 kg/km
- Nominal outer diameter: 36.0 mm
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 353 A
- Permissible current rating when buried: 257 A
- Voltage drop, 3 conductors: 0.37 V/A.km
3x150
Nexans ref. 23150SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 3
- Conductor cross-section: 150 mm²
- Approximate weight: 5860 kg/km
- Nominal outer diameter: 41.0 mm
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 406 A
- Permissible current rating when buried: 287 A
- Voltage drop, 3 conductors: 0.3 V/A.km
3x16
Nexans ref. 23016SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 3
- Conductor cross-section: 16 mm²
- Approximate weight: 950 kg/km
- Nominal outer diameter: 19.0 mm
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 99 A
- Permissible current rating when buried: 84 A
- Voltage drop, 3 conductors: 2.2 V/A.km
3x185
Nexans ref. 23185SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 3
- Conductor cross-section: 185 mm²
- Approximate weight: 7010 kg/km
- Nominal outer diameter: 44.0 mm
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 463 A
- Permissible current rating when buried: 324 A
- Voltage drop, 3 conductors: 0.26 V/A.km
3x2.5
Nexans ref. 23003SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Approximate weight: 330 kg/km
- Nominal outer diameter: 13.0 mm
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 30 A
- Voltage drop, 3 conductors: 14.0 V/A.km
3x240
Nexans ref. 23240SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 3
- Conductor cross-section: 240 mm²
- Approximate weight: 8730 kg/km
- Nominal outer diameter: 49.0 mm
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Permissible current rating in open air: 546 A
- Permissible current rating when buried: 375 A
- Voltage drop, 3 conductors: 0.21 V/A.km
3x25
Nexans ref. 23025SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 3
- Conductor cross-section: 25 mm²
- Approximate weight: 1410 kg/km
- Nominal outer diameter: 23.0 mm
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 131 A
- Permissible current rating when buried: 107 A
- Voltage drop, 3 conductors: 1.65 V/A.km
3x300
Nexans ref. 23300SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 3
- Conductor cross-section: 300 mm²
- Approximate weight: 10640 kg/km
- Nominal outer diameter: 53.0 mm
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- Permissible current rating in open air: 628 A
- Permissible current rating when buried: 419 A
- Voltage drop, 3 conductors: 0.18 V/A.km
3x35
Nexans ref. 23035SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 3
- Conductor cross-section: 35 mm²
- Approximate weight: 1720 kg/km
- Nominal outer diameter: 25.0 mm
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 162 A
- Permissible current rating when buried: 129 A
- Voltage drop, 3 conductors: 1.15 V/A.km
3x4
Nexans ref. 23004SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 3
- Conductor cross-section: 4 mm²
- Approximate weight: 400 kg/km
- Nominal outer diameter: 14.0 mm
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 44 A
- Permissible current rating when buried: 39 A
- Voltage drop, 3 conductors: 8.7 V/A.km
3x400
Nexans ref. 23400SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 3
- Conductor cross-section: 400 mm²
- Approximate weight: 13190 kg/km
- Nominal outer diameter: 59.0 mm
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- Permissible current rating in open air: 731 A
- Permissible current rating when buried: 439 A
- Voltage drop, 3 conductors: 0.17 V/A.km
3x50
Nexans ref. 23050SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 3
- Conductor cross-section: 50 mm²
- Approximate weight: 2100 kg/km
- Nominal outer diameter: 25.0 mm
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 197 A
- Permissible current rating when buried: 153 A
- Voltage drop, 3 conductors: 0.89 V/A.km
3x6
Nexans ref. 23006SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 3
- Conductor cross-section: 6 mm²
- Approximate weight: 480 kg/km
- Nominal outer diameter: 15.0 mm
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 56 A
- Permissible current rating when buried: 49 A
- Voltage drop, 3 conductors: 5.9 V/A.km
3x70
Nexans ref. 23070SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 3
- Conductor cross-section: 70 mm²
- Approximate weight: 2980 kg/km
- Nominal outer diameter: 30.0 mm
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 251 A
- Permissible current rating when buried: 188 A
- Voltage drop, 3 conductors: 0.6 V/A.km
3x95
Nexans ref. 23095SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 3
- Conductor cross-section: 95 mm²
- Approximate weight: 3810 kg/km
- Nominal outer diameter: 33.0 mm
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 304 A
- Permissible current rating when buried: 226 A
- Voltage drop, 3 conductors: 0.45 V/A.km
4x1.5
Nexans ref. 24002SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
- Approximate weight: 160 kg/km
- Nominal outer diameter: 11.0 mm
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 25 A
- Permissible current rating when buried: 23 A
- Voltage drop, 3 conductors: 22.8 V/A.km
4x10
Nexans ref. 24010SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 4
- Conductor cross-section: 10 mm²
- Approximate weight: 880 kg/km
- Nominal outer diameter: 18.0 mm
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 78 A
- Permissible current rating when buried: 65 A
- Voltage drop, 3 conductors: 3.5 V/A.km
4x120
Nexans ref. 24120SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Approximate weight: 6070 kg/km
- Nominal outer diameter: 40.0 mm
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 353 A
- Permissible current rating when buried: 257 A
- Voltage drop, 3 conductors: 0.37 V/A.km
4x150
Nexans ref. 24150SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Approximate weight: 7250 kg/km
- Nominal outer diameter: 44.0 mm
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 406 A
- Permissible current rating when buried: 287 A
- Voltage drop, 3 conductors: 0.3 V/A.km
4x16
Nexans ref. 24016SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 4
- Conductor cross-section: 16 mm²
- Approximate weight: 1250 kg/km
- Nominal outer diameter: 21.0 mm
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 99 A
- Permissible current rating when buried: 84 A
- Voltage drop, 3 conductors: 2.2 V/A.km
4x185
Nexans ref. 24185SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Approximate weight: 8810 kg/km
- Nominal outer diameter: 48.0 mm
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 463 A
- Permissible current rating when buried: 324 A
- Voltage drop, 3 conductors: 0.26 V/A.km
4x2.5
Nexans ref. 24003SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
- Approximate weight: 350 kg/km
- Nominal outer diameter: 13.0 mm
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 30 A
- Voltage drop, 3 conductors: 14.0 V/A.km
4x240
Nexans ref. 24240SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Approximate weight: 11140 kg/km
- Nominal outer diameter: 54.0 mm
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Permissible current rating in open air: 546 A
- Permissible current rating when buried: 375 A
- Voltage drop, 3 conductors: 0.21 V/A.km
4x25
Nexans ref. 24025SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 4
- Conductor cross-section: 25 mm²
- Approximate weight: 1730 kg/km
- Nominal outer diameter: 25.0 mm
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 131 A
- Permissible current rating when buried: 107 A
- Voltage drop, 3 conductors: 1.65 V/A.km
4x300
Nexans ref. 24300SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 4
- Conductor cross-section: 300 mm²
- Approximate weight: 13520 kg/km
- Nominal outer diameter: 60.0 mm
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- Permissible current rating in open air: 628 A
- Permissible current rating when buried: 419 A
- Voltage drop, 3 conductors: 0.18 V/A.km
4x35
Nexans ref. 24035SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Approximate weight: 2120 kg/km
- Nominal outer diameter: 27.0 mm
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 162 A
- Permissible current rating when buried: 129 A
- Voltage drop, 3 conductors: 1.15 V/A.km
4x4
Nexans ref. 24004SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 4
- Conductor cross-section: 4 mm²
- Approximate weight: 430 kg/km
- Nominal outer diameter: 14.0 mm
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 44 A
- Permissible current rating when buried: 39 A
- Voltage drop, 3 conductors: 8.7 V/A.km
4x400
Nexans ref. 24400SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 4
- Conductor cross-section: 400 mm²
- Approximate weight: 17690 kg/km
- Nominal outer diameter: 67.0 mm
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- Permissible current rating in open air: 731 A
- Permissible current rating when buried: 439 A
- Voltage drop, 3 conductors: 0.17 V/A.km
4x50
Nexans ref. 24050SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Approximate weight: 2570 kg/km
- Nominal outer diameter: 27.0 mm
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 197 A
- Permissible current rating when buried: 153 A
- Voltage drop, 3 conductors: 0.89 V/A.km
4x6
Nexans ref. 24006SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 4
- Conductor cross-section: 6 mm²
- Approximate weight: 620 kg/km
- Nominal outer diameter: 16.0 mm
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 56 A
- Permissible current rating when buried: 49 A
- Voltage drop, 3 conductors: 5.9 V/A.km
4x70
Nexans ref. 24070SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Approximate weight: 3680 kg/km
- Nominal outer diameter: 32.0 mm
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 251 A
- Permissible current rating when buried: 188 A
- Voltage drop, 3 conductors: 0.6 V/A.km
4x95
Nexans ref. 24095SXZHSH30BD0
- Conductor shape: Sector-shaped
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Approximate weight: 4700 kg/km
- Nominal outer diameter: 35.0 mm
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 304 A
- Permissible current rating when buried: 226 A
- Voltage drop, 3 conductors: 0.45 V/A.km
5x1.5
Nexans ref. 25002SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 5
- Conductor cross-section: 1.5 mm²
- Approximate weight: 380 kg/km
- Nominal outer diameter: 13.0 mm
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 25 A
- Permissible current rating when buried: 23 A
- Voltage drop, 3 conductors: 22.8 V/A.km
5x10
Nexans ref. 25010SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 5
- Conductor cross-section: 10 mm²
- Approximate weight: 1040 kg/km
- Nominal outer diameter: 20.0 mm
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 78 A
- Permissible current rating when buried: 65 A
- Voltage drop, 3 conductors: 3.5 V/A.km
5x16
Nexans ref. 25016SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 5
- Conductor cross-section: 16 mm²
- Approximate weight: 1490 kg/km
- Nominal outer diameter: 23.0 mm
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 99 A
- Permissible current rating when buried: 84 A
- Voltage drop, 3 conductors: 2.2 V/A.km
5x2.5
Nexans ref. 25003SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 5
- Conductor cross-section: 2.5 mm²
- Approximate weight: 450 kg/km
- Nominal outer diameter: 14.0 mm
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 30 A
- Voltage drop, 3 conductors: 14.0 V/A.km
5x25
Nexans ref. 25025SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 5
- Conductor cross-section: 25 mm²
- Approximate weight: 2070 kg/km
- Nominal outer diameter: 27.0 mm
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 131 A
- Permissible current rating when buried: 107 A
- Voltage drop, 3 conductors: 1.65 V/A.km
5x35
Nexans ref. 25035SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 5
- Conductor cross-section: 35 mm²
- Approximate weight: 2540 kg/km
- Nominal outer diameter: 29.0 mm
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 162 A
- Permissible current rating when buried: 129 A
- Voltage drop, 3 conductors: 1.15 V/A.km
5x4
Nexans ref. 25004SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 5
- Conductor cross-section: 4 mm²
- Approximate weight: 640 kg/km
- Nominal outer diameter: 16.0 mm
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 44 A
- Permissible current rating when buried: 39 A
- Voltage drop, 3 conductors: 8.7 V/A.km
5x50
Nexans ref. 25050SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 5
- Conductor cross-section: 50 mm²
- Approximate weight: 3480 kg/km
- Nominal outer diameter: 34.0 mm
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 197 A
- Permissible current rating when buried: 153 A
- Voltage drop, 3 conductors: 0.89 V/A.km
5x6
Nexans ref. 25006SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 5
- Conductor cross-section: 6 mm²
- Approximate weight: 780 kg/km
- Nominal outer diameter: 18.0 mm
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 56 A
- Permissible current rating when buried: 49 A
- Voltage drop, 3 conductors: 5.9 V/A.km
5x70
Nexans ref. 25070SXZHSH30BD0
- Conductor shape: Circular
- Number of cores: 5
- Conductor cross-section: 70 mm²
- Approximate weight: 4670 kg/km
- Nominal outer diameter: 39.0 mm
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 251 A
- Permissible current rating when buried: 188 A
- Voltage drop, 3 conductors: 0.6 V/A.km
Description
Description
Standards
-
ProductBS 6724
-
TestIEC 60332-3 Cat.C
Application
These power cables are used for electricity supply in low voltage installation systems.
They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant…)
Design
- Conductor
Stranded bare copper class 2 acc. to IEC 60228
- Insulation
Cross Linked Polyethylene "XLPE"
- Inner Sheath or Bedding
Halogen Free Flame Retardant "HFFR"
- Armour
Galvanized Steel Wire Armour "SWA"
- Outer Sheath
Halogen Free Flame Retardant "HFFR", to BS 4066 or equivalent.
Installation Conditions:
- Air Temperature : 30 Deg.
- Ground Temperature: 20 Deg.
- Soil Thermal Resistivity : 2.5 k.m/w
- Depth of lay : 0.7 m
All dimensions have tolerance +- 7 %
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Insulation
XLPE (Cross-linked Polyethylene)
Inner sheath
Halogen free flame retardant
Armour type
Galvanized steel wires
Outer sheath
HFFR (Halogen Free Flame Retardant)
Colour
Black
Halogen free
Yes
Conductor flexibility
Stranded class 2
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Bending factor when laying
- (xD)
Bending factor when installed
- (xD)
Smoke density
IEC 61034
Gases corrosivity
IEC 60754-2
Resources
Resources
Selling & delivery Information
Marking
no. of cores x conductor sizes mm2 Cu / XLPE / SWA / HFFR 600/1000 V Standard MADE IN QATAR QICC-Nexans Year Meters
Custom marking available
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
